Built-In Slurry Gate
Agitates solids into suspension before pumping to support the handling of solids-laden sludge.
XYLEM
Godwin Heidra 100SG
Hydraulic submersible pump for handling slurry and solids-laden water in mining operations.
The Godwin Heidra 100SG is a hydraulically driven submersible pump featuring an integrated slurry gate to help agitate and pump solids-laden fluids in demanding operating conditions.
OVERVIEW
Built for slurry. Ready for demanding mine conditions.
The Godwin Heidra 100SG combines a hydraulic drive system with a slurry gate that agitates solids into suspension before pumping. This configuration makes it well suited to handling slurry, sludge, sediment and solids-laden water across demanding mining operations.
Hydraulic Drive
Hydraulic drive enables the pump-end to operate submerged in the pumped liquid.
Open Impeller
Open impeller design provides versatility across different fluids while helping reduce the risk of stoppages.
Double Mechanical Seals
Double mechanical face seals are designed for reliable performance in demanding operating conditions.
Durable Pump-End
The pump-end is designed for durability, with material options available for increased resistance to abrasion, erosion and corrosion.
Independent Bearings
Pump bearings operate independently from the hydraulic motor so pump loads do not affect motor performance.
PRODUCT PROFILE
Technical data and primary uses.
The final configuration still needs to match your application conditions and on-site technical evaluation.
| Discharge Size | 100 mm |
|---|---|
| Solids Handling | 45 mm |
| Hydraulic Motor | Gear |
| Drive Pressure | 250 bar |
| Operating Speed | 1.200–1.800 rpm |
| Consumed Power | 4–20 kW |
| Pump-End Dimensions | 480 × 580 × 700 mm |
| Pump-End Weight | 145 kg |
APPLICATIONS
Designed for real operational requirements.

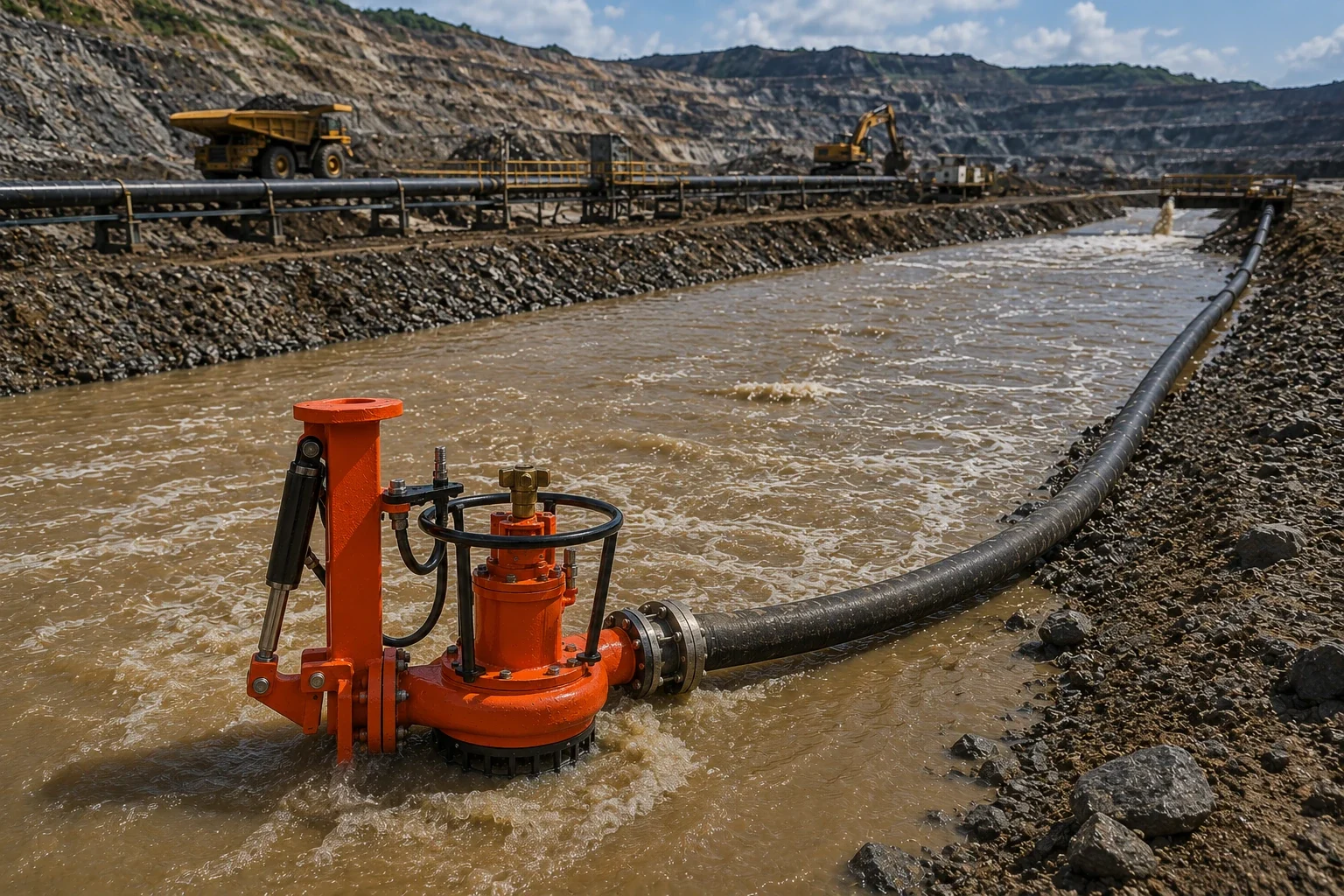

Mine Slurry Pumping
Supports pumping of slurry and solids-laden fluids across demanding mining operations.

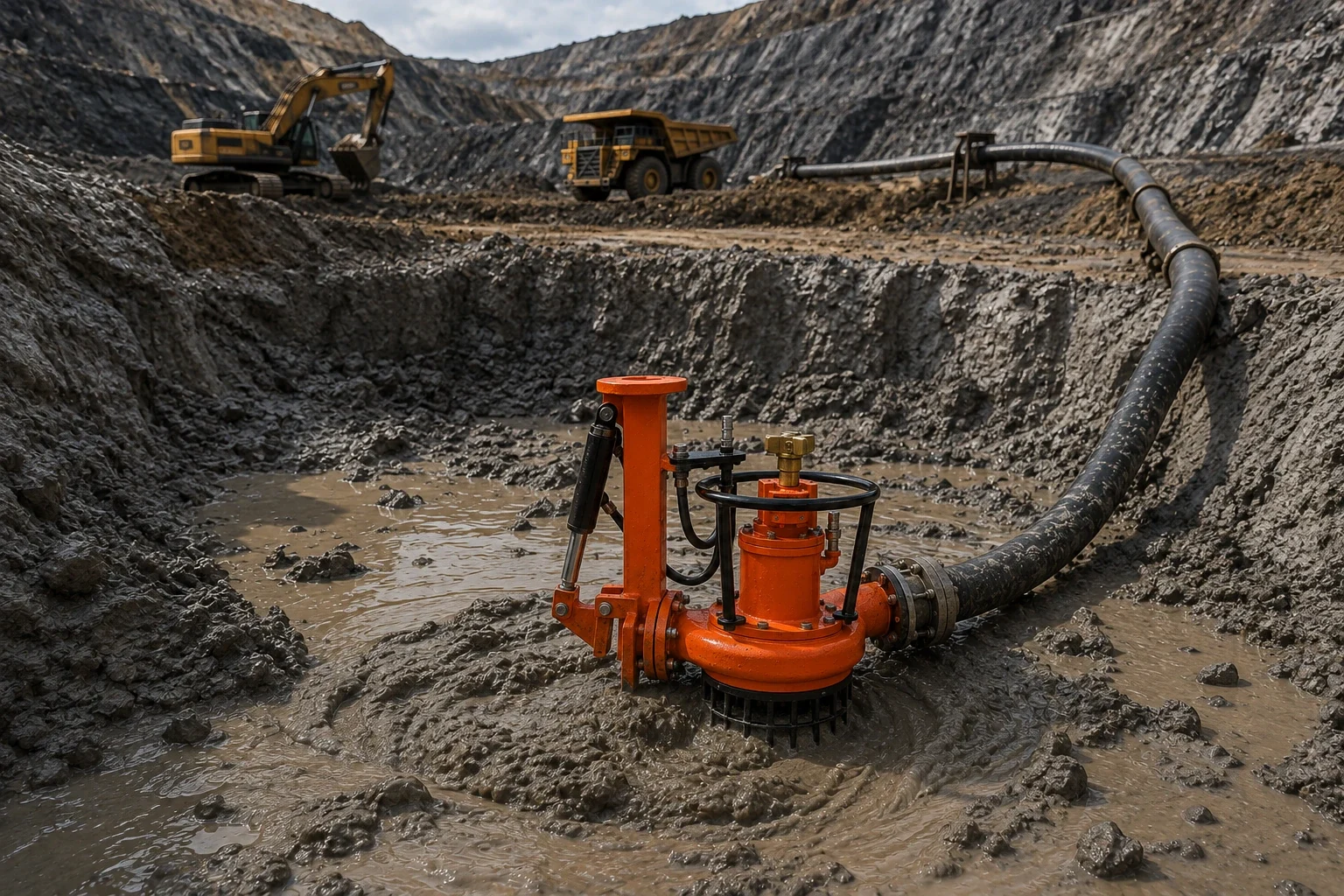

Mine Sump Clean-Out
Helps agitate and remove sediment, sludge and solids accumulated in mine sumps.
Sediment-Laden Water Handling
Supports pumping of water containing sediment and suspended solids across mine operating areas.
Mine Sludge Handling
Supports the transfer of sludge and muddy material using the slurry gate to help keep solids in suspension.

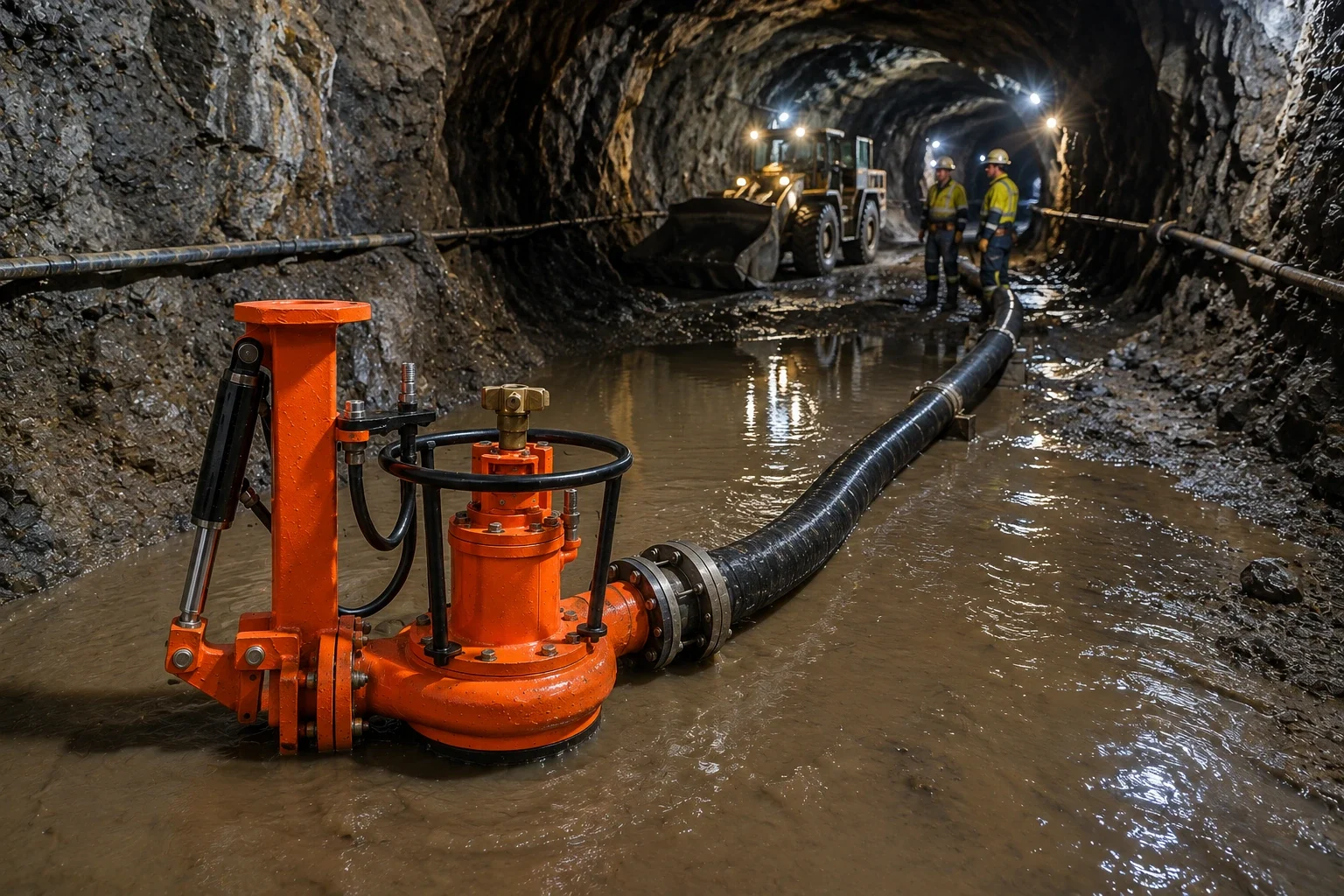

Mine Site Dewatering
Supports mine water removal and management, particularly where the pumped water contains mud, sediment or solids.
PRODUCT REFERENCEInformation you can verify.
The details on this page are drawn from the principal's own catalogues and official references.
